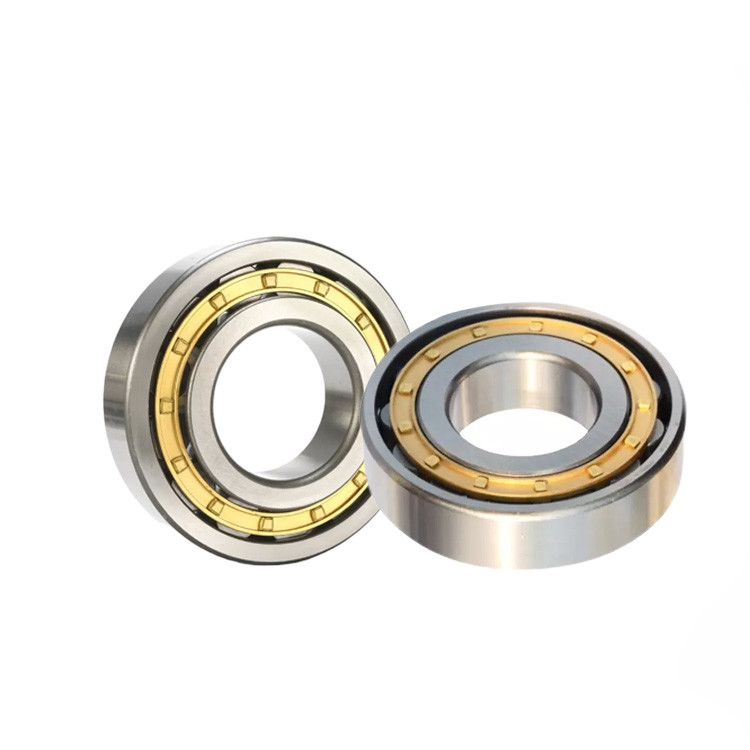

High Quality Multifunctional Door Roller Bearing Cylindrical Roller Bearing 42317E NJ317E
Description:of Cylindrical Roller Bearing
Type NJ bearings have two machined flanges on the outer ring and one flange on the inner ring side of the machined flange.
The roller and cage assemblies are in the outer ring. An integral flange on the inner ring allows this bearing to accommodate axial loads.
Cylindrical roller bearings combine greater radial load capacity, the ability to accommodate faster speeds and other advantages, making them ideal for use in a variety of industries. Typical markets that can utilize these components include: oil and gas, gearboxes, wind turbines, machine tools, electric motors, material handling, pumps, steel mills
Specifications: of Cylindrical Roller Bearing
| Type | Cylindrical Roller Bearing |
| Structure | Cylindrical Roller Bearing |
| Applicable Industries | machinery repair shop, manufacturing plant, automobile manufacturing, agricultural machinery |
| Brand Name | deep dream/OEM |
| Size | 30mm-800mm |
| Accuracy Grade | P0 P6 P5 P4 |
| Seal Type | open |
| Retainer Type | Copper / Nylon / Steel |
| Origin | Shandong, China |
| Brand Name | RPZ, LONK, XWFD, ZMW, ML or according to your requirements |
| Service | OEM / ODM or customer logo is acceptable |

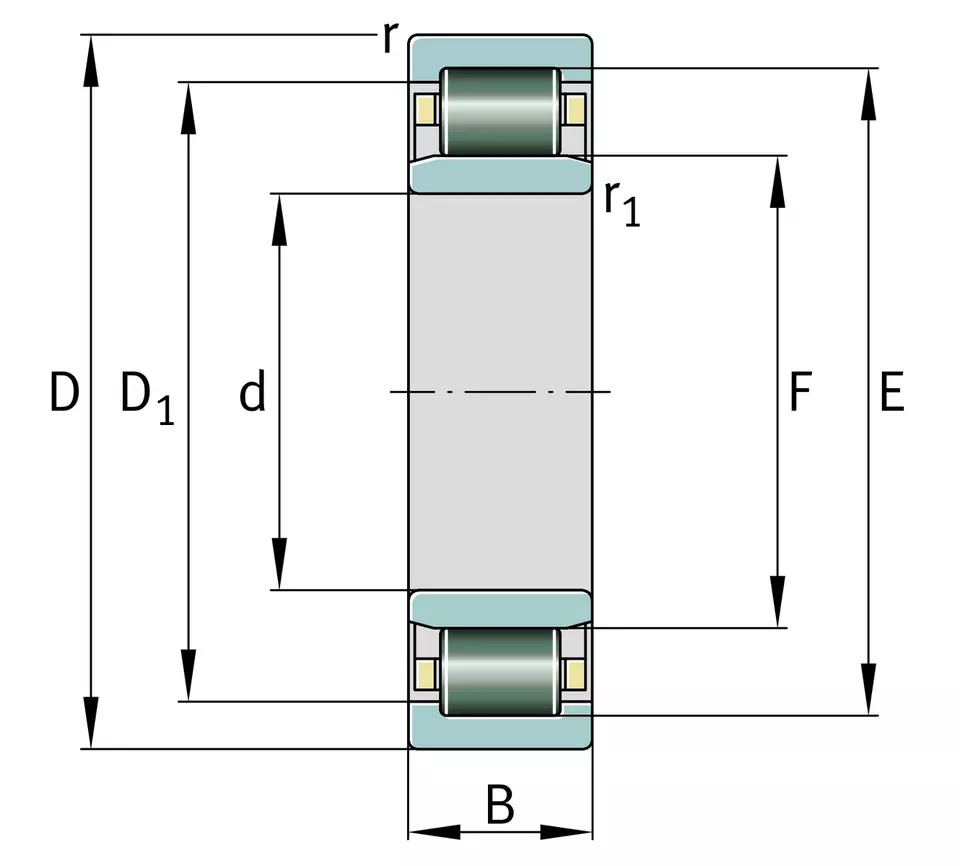

| Bearing | Old number | Nominal Bearing Dimensions(mm) | Bearing |
| Number | (cost) | Weight |
| | | d | D | B | (kg) |
| NF202 | 12202 | 15 | 35 | 11 | 0.051 |
| NF203 | 12203 | 17 | 40 | 12 | 0.072 |
| NF204 | 12204 | 20 | 47 | 14 | 0.117 |
| NF205 | 12205 | 25 | 52 | 15 | 0.142 |
| NF206 | 12206 | 30 | 62 | 16 | 0.216 |
| NF207 | 12207 | 35 | 72 | 17 | 0.317 |
| NF2207 | 12507 | 35 | 72 | 23 | 0.324 |
| NF208 | 12208 | 40 | 80 | 18 | 0.395 |
| NF209 | 12209 | 45 | 85 | 19 | 0.461 |
| NF210 | 12210 | 50 | 90 | 20 | 0.517 |
| NF211 | 12211 | 55 | 100 | 21 | 0.690 |
| NF212 | 12212 | 60 | 110 | 22 | 0.888 |
| NF213 | 12213 | 65 | 120 | 23 | 1.132 |
| NF214 | 12214 | 70 | 125 | 24 | 1.241 |
| NF215 | 12215 | 75 | 130 | 25 | 1.338 |
| NF216 | 12216 | 80 | 140 | 26 | 1.628 |
| NF217 | 12217 | 85 | 150 | 28 | 2.050 |
| NF218 | 12218 | 90 | 160 | 30 | 2.460 |
| NF219 | 12219 | 95 | 170 | 32 | 3.020 |
| NF220 | 12220 | 100 | 180 | 34 | 3.650 |
| NF221 | 12221 | 105 | 190 | 36 | 4.310 |
| NF222 | 12222 | 110 | 200 | 38 | 5.010 |
| NF228 | 12228 | 140 | 250 | 42 | 8.900 |
| NF230 | 12230 | 150 | 270 | 45 | 11.000 |
| NF304 | 12304 | 20 | 52 | 15 | 0.158 |
| NF305 | 12305 | 25 | 62 | 17 | 0.260 |
| NF2305 | 12605 | 25 | 62 | 24 | 0.370 |
| NF306 | 12306 | 30 | 72 | 19 | 0.387 |
| NF2306 | 12606 | 30 | 72 | 27 | 0.600 |
| NF307 | 12307 | 35 | 80 | 21 | 0.515 |
| NF2307 | 12607 | 35 | 80 | 31 | 0.850 |
| NF308 | 12308 | 40 | 90 | 23 | 0.709 |
| NF2308 | 12608 | 40 | 90 | 33 | 1.100 |
| NF309 | 12309 | 45 | 100 | 25 | 0.938 |
| NF2309 | 12609 | 45 | 100 | 36 | 1.500 |
| NF310 | 12310 | 50 | 110 | 27 | 1.241 |
| NF2310 | 12610 | 50 | 110 | 40 | 1.900 |
| NF311 | 12311 | 55 | 120 | 29 | 1.553 |
| NF2311 | 12611 | 55 | 120 | 43 | 2.400 |
| NF312 | 12312 | 60 | 130 | 31 | 1.970 |
| NF313 | 12313 | 65 | 140 | 33 | 2.410 |
| NF314 | 12314 | 70 | 150 | 35 | 2.940 |
| NF315 | 12315 | 75 | 160 | 37 | 3.500 |
| NF316 | 12316 | 80 | 170 | 39 | 4.230 |
| NF317 | 12317 | 85 | 180 | 41 | 4.880 |
| NF318 | 12318 | 90 | 190 | 43 | 5.810 |
| NF319 | 12319 | 95 | 200 | 45 | 6.690 |
| NF320 | 12320 | 100 | 215 | 47 | 8.300 |
| NF321 | 12321 | 105 | 225 | 49 | 8.760 |
| NF322 | 12322 | 110 | 240 | 50 | 9.460 |
| NF324 | 12324 | 120 | 260 | 55 | 14.130 |
| NF326 | 12326 | 130 | 280 | 58 | 17.700 |
| NF328 | 12328 | 140 | 300 | 62 | 21.600 |
| NF330 | 12330 | 150 | 320 | 65 | 28.500 |
| NF332 | 12332 | 160 | 340 | 68 | 31.700 |
| NF406 | 12406 | 30 | 90 | 23 | 0.75 |
| NF407 | 12407 | 35 | 100 | 25 | 1.10 |
| NF408 | 12408 | 40 | 110 | 27 | 1.41 |
| NF409 | 12409 | 45 | 120 | 29 | 1.77 |
| NF410 | 12410 | 50 | 130 | 31 | 2.17 |
| NF411 | 12411 | 55 | 140 | 33 | 2.71 |
| NF412 | 12412 | 60 | 150 | 35 | 3.26 |
| NF413 | 12413 | 65 | 160 | 37 | 3.86 |
| NF414 | 12414 | 70 | 180 | 42 | 5.68 |
| NF415 | 12415 | 75 | 190 | 45 | 6.74 |
| NF416 | 12416 | 80 | 200 | 48 | 7.85 |
| NF417 | 12417 | 85 | 210 | 52 | 9.36 |
| NF418 | 12418 | 90 | 225 | 54 | 11.11 |
| NF419 | 12419 | 95 | 240 | 55 | 14.67 |
| NF420 | 12420 | 100 | 250 | 58 | 15.10 |
| NF421 | 12421 | 105 | 260 | 60 | 20.61 |
| NF422 | 12422 | 110 | 280 | 65 | 21.47 |
| NF424 | 12424 | 120 | 310 | 72 | 30.16 |
| NF426 | 12426 | 130 | 340 | 78 | 39.00 |
| NF428 | 12428 | 140 | 360 | 82 | 50.50 |
| NF430 | 12430 | 150 | 380 | 85 | 57.40 |
1. High speed, High Precision, Low Noise, Long Service Life
2. Widely used
3. Large Inventories
4. High Quality and Competitive Prices
5. Various Brands
6. OEM is supported
FAQ:
1. who are we?
We are based in Shaanxi, China, start from 2019,sell to North America(17.00%),Eastern Asia(15.00%),Domestic Market(12.00%),Eastern Europe(10.00%),Western Europe(10.00%),South Asia(5.00%),Southeast Asia(5.00%),South America(5.00%),Northern Europe(5.00%),Oceania(5.00%),Mid East(4.00%),Southern Europe(3.00%),Africa(2.00%),Central America(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
deep groove ball bearing,needle rollerbearing,tapered roller bearing,bearings,pillow block bearing
4. why should you buy from us not from other suppliers?
Our company is located in Xi'An, China. With advanced science and technology R&D team, strong marketing and financial support, sound after-sales service, professional engineers, we will supply you goods with high quality and good service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
Product Tags:
|
|
NJ317E High Speed Cylindrical Roller Bearings 140x65mm 42317E Door Roller Bearing Multi Functional Images
|
